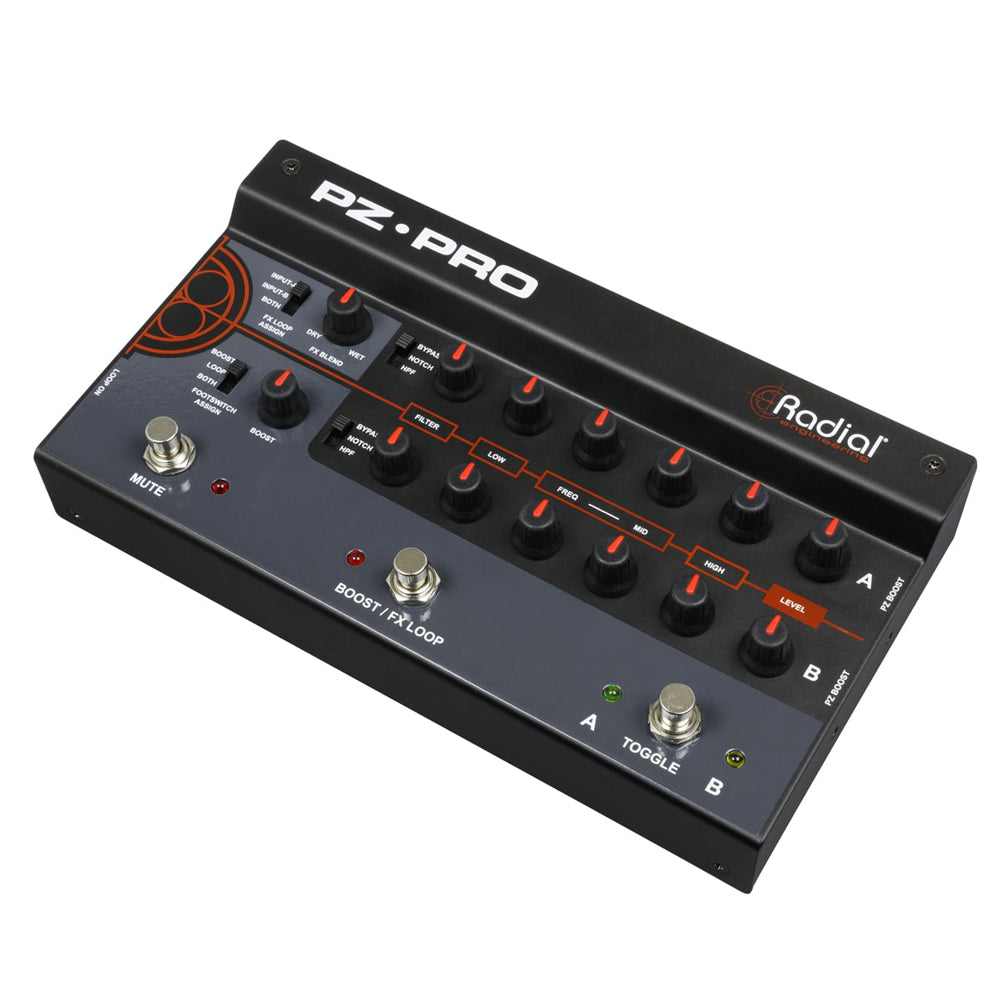

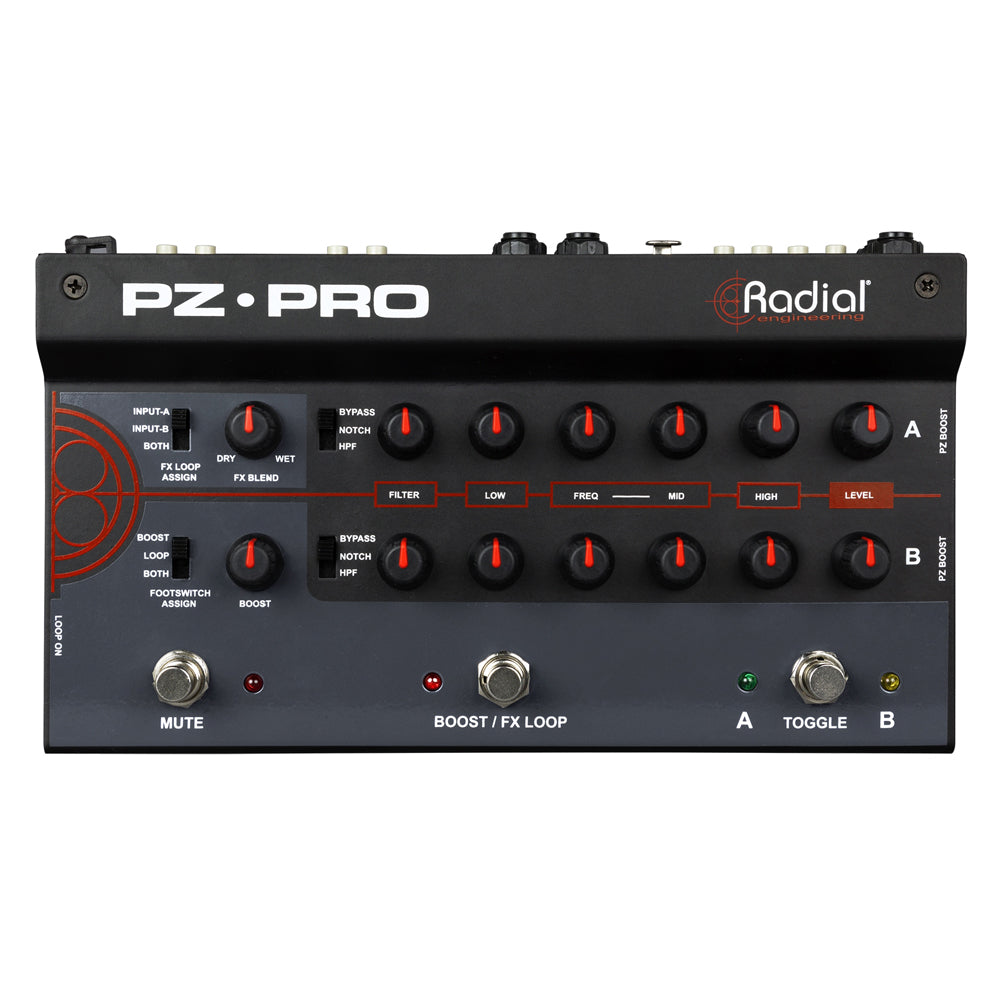

Radial PZ-Pro - Acoustic D.I.
- Fast Shipping!
- In stock, ready to ship
- Inventory on the way
Take complete control over your tone, EQ settings, and effects with the PZ-Pro, a two channel instrument preamp, DI and switcher. Each channel features a separate equalizer strip complete with a filter section to reduce feedback on stage. The second channel of the PZ-Pro also features a microphone input to allow any dynamic or condenser microphone to be used, including clip-on instrument mics. Three footswitches provide the ability to toggle between each input channel, activate a built-in booster and an effects loop, or mute the signal for silent tuning on stage.
|Audio circuit type:||Proprietary active circuit|
|Number of channels:||2x Inputs, Mono Pre and Post EQ XLR balanced Out|
|Frequency response:||20Hz-20kHz (+/-0.5dB)|
|Gain:||+20dB (Instrument Input), +55dB (Mic Input)|
|Clip Level:||+10dBu @ XLR output|
|Total harmonic distortion:||<0.005% @ 1kHz|
|Input Impedance:||220k Ohm at input jack (10meg Ohm when PZ Boost active)|
|Output Impedance:||1k Ohm|
|180° polarity reverse, Ground lift, Effects Loop, EQ Control, Boost|

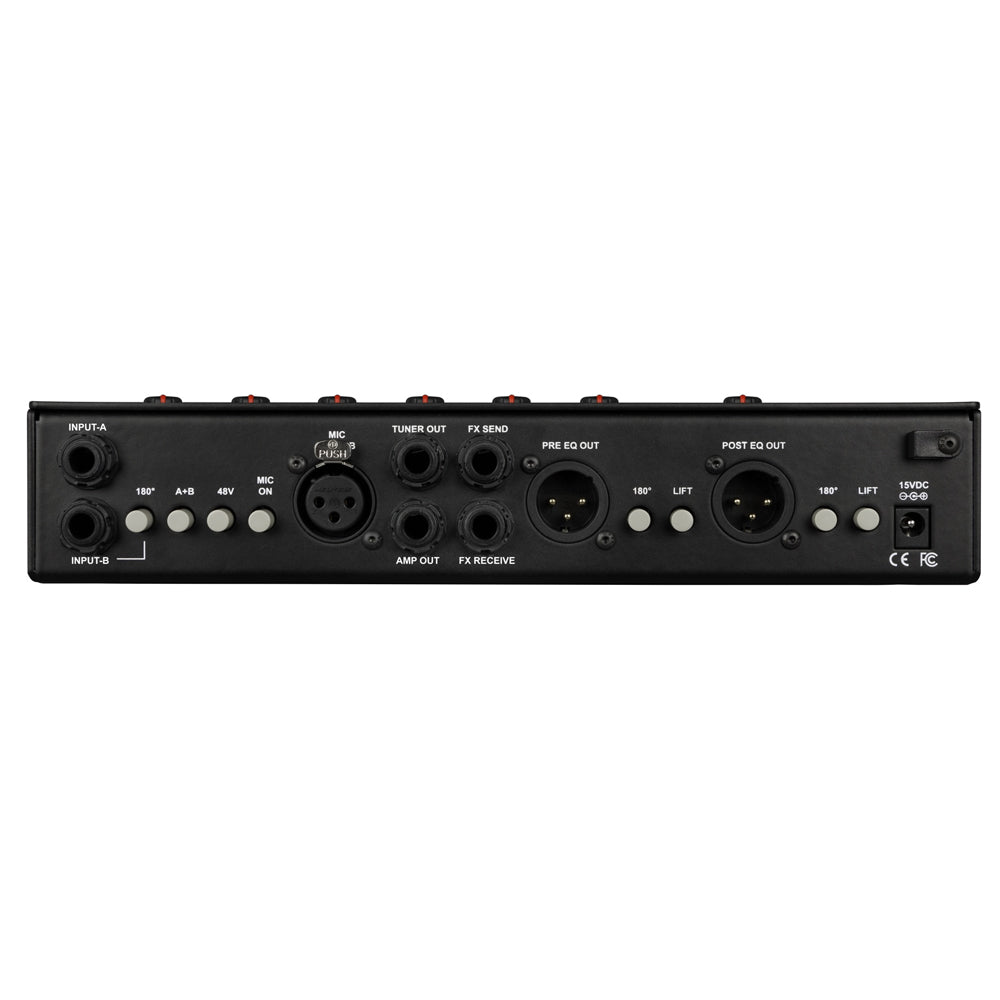

|Input Connectors:||1/4" instrument, XLR microphone|
|Output Connectors:||Pre and Post EQ XLR, 1/4" Amp out|
|Extras:||1/4" Effects Loop, Boost, Tuner|
|Shipping size (L x W x D):||9.10"l x 5.32"w x 1.82"h (231 x 135 x 46mm)|
|Power:||15VDC 400mA, center-pin positive|
|Conditions:||For use in dry locations only between 5°C and 40°C|
